Creating a custom hatch in AutoCAD
When you create a hatch in AutoCAD, you are limited to a number of patterns to choose from. While in AutoCAD you can find a wealth of patterns that come with the default installation, in some occasions you may need to apply a different one.
In this blog, we will progress step by step through an AutoCAD course exercise where we create a hatch using an image to generate the pattern.
Note: the below content was created by Excitech prior to becoming Symetri in January 2021, following its acquisition by Addnode Group. All Excitech products, services and solutions mentioned in this blog are available through Symetri.

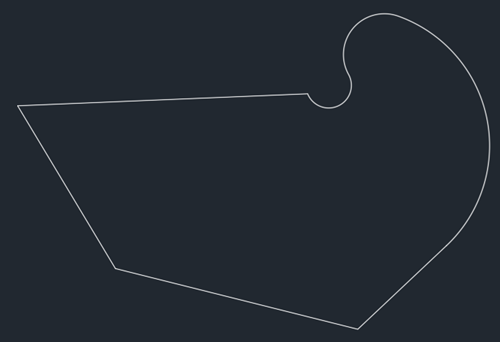

- Draw the boundary of the hatch using a polyline.
- Click on the ‘Super Hatch’ command from the ‘Express Tools’ tab of the ribbon.

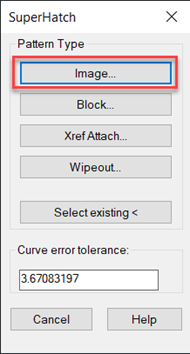

- In the dialog that pops up, select ‘Image…’. Note how you can also use a block, an Xref or a wipeout to generate the pattern.

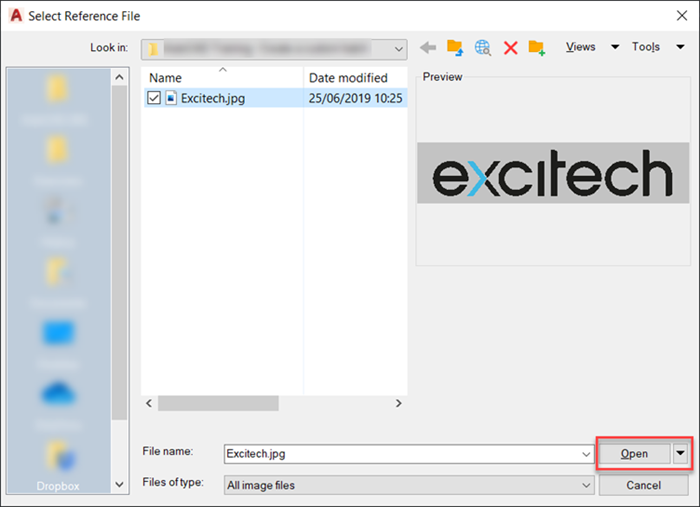

- Browse to the image file and open it.

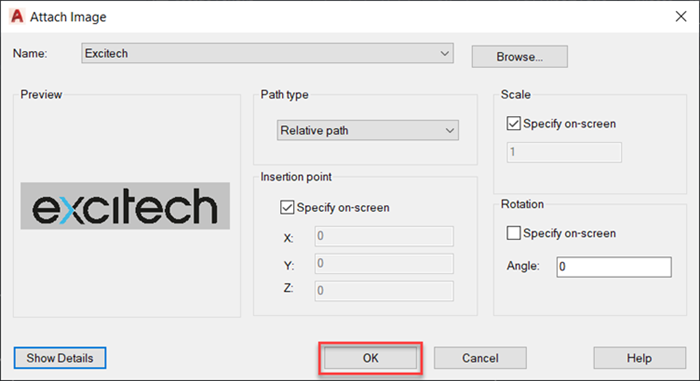

- Specify the options about the insertion point, scale, and rotation of the image accordingly and click ‘OK’. You can use the ‘Show Details’ button to show information about the resolution and size of the image.

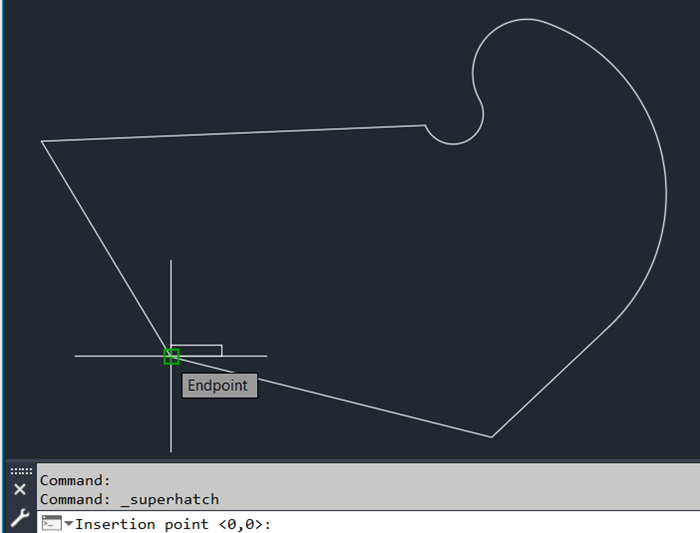

- Select the insertion point of the image:

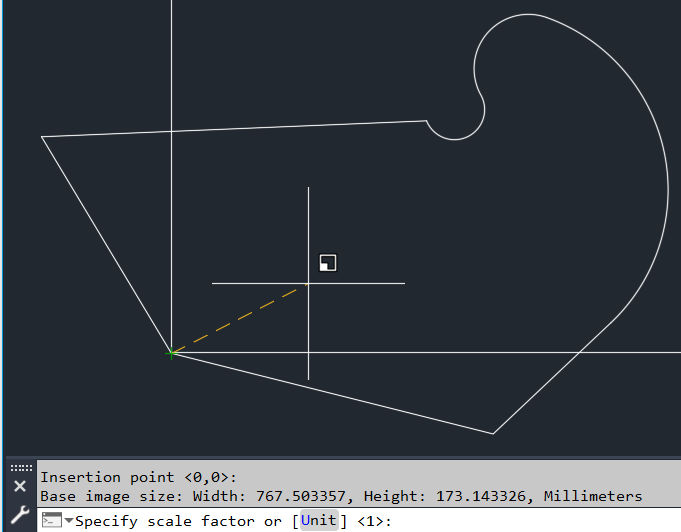

- Specify the scale factor:

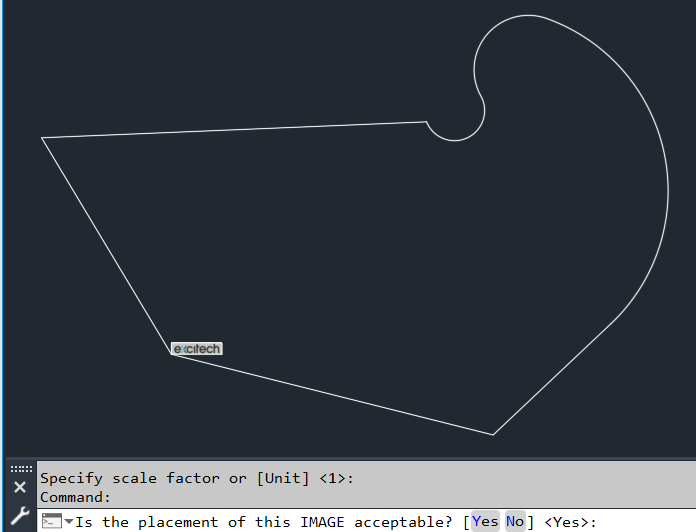

- Confirm the placement of the image.

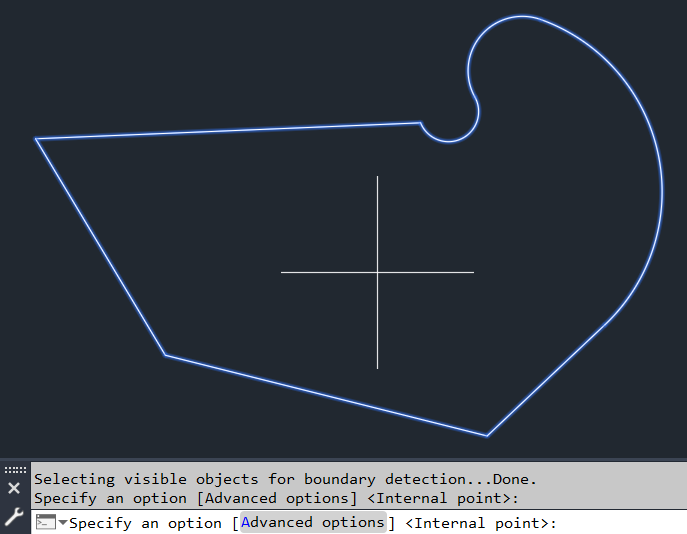

- Pick a point inside the boundary where you want your hatch and press <Enter> to finish the command.

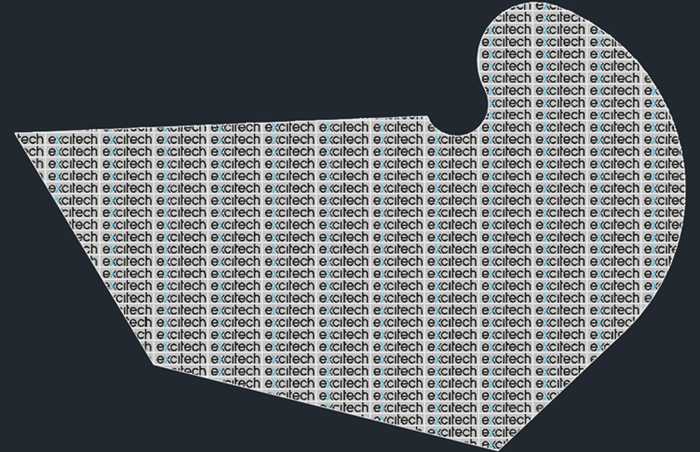

- The command will repeat the image until it fills the area that was selected.
