Create Your Own Materials in SketchUp Pro

The process is straight forward, all you need is an image file containing the pattern that you would like to repeat in the material.

The following workflow provides step-by-step instructions on how to create your own materials from an image and how to create a custom collection for them in SketchUp Pro.

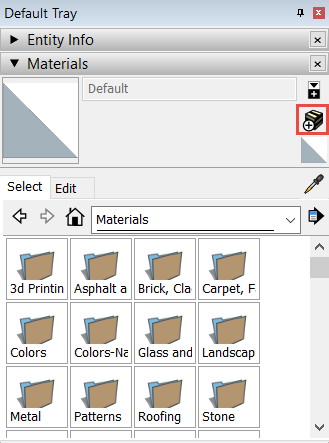

From the Materials section of the Default tray, click on the highlighted icon to create a new material as follows:

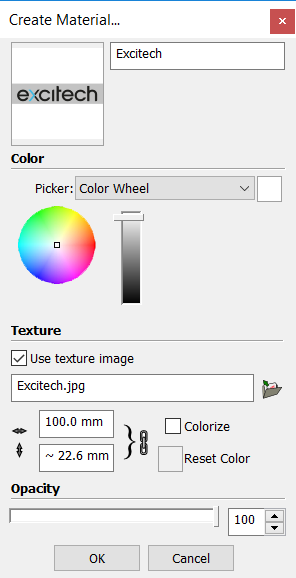

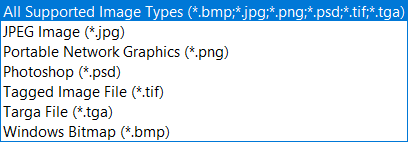

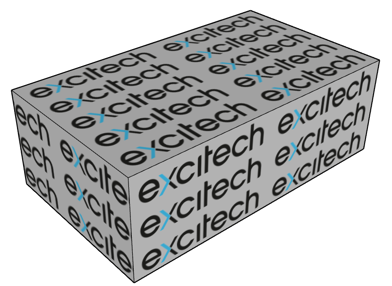

Select a name for your material, check the Use texture image option and browse to the image (supported file types below). Notice that you also have the option to select the size of the image in the material. If you then apply it to an area that is larger than these sizes, the image will be repeated to fit the entire space.

At this point, your newly created material will show in the Materials section of the Default tray, under the In model collection. If you save your model as a template (via File -> Save as template…), you can then use the custom material in any model that is created from that template.

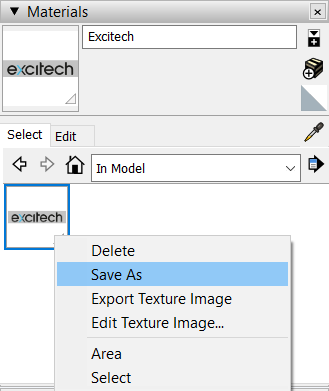

If you want to access your materials from any model, regardless of the template, you can create a custom collection. In order to do that, you need to save your material as a Material file (*.skm).

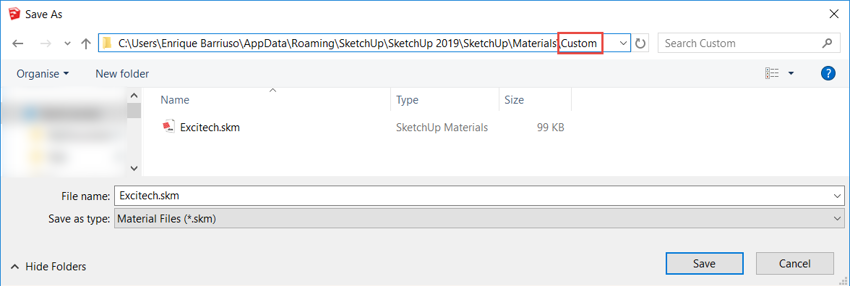

The Save As dialog will open in the following path C:\Users\<Username>\AppData\Roaming\SketchUp\SketchUp 2019\SketchUp\Materials. Create a folder in that location with a name of your choosing for the collection and save the material file in that folder.

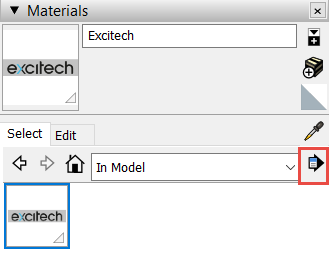

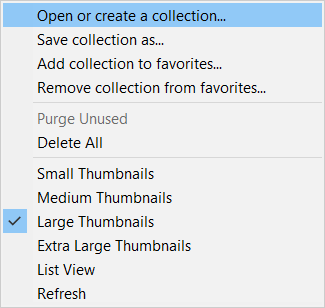

In order to add the collection, select Open or create a collection… from the Details button and pick the folder that you created for the collection in the previous step.

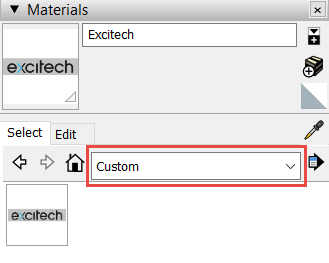

You can now access the collection from the drop-down menu, with all the materials that you saved in the folder.
