Why are more learners attending more advanced course?
This shift in behaviour comes as we move to new work methodologies and culture after the pandemic. Therefore, over recent months I have asked my students why there has been an increased interest in more advanced AutoCAD training courses.
The most common answers, in many cases, is that their company has reached a plateau, the safe known workflows are not efficient anymore, many CAD drafting staff have retired and the time has come to refresh and reskill to advance the business to the next level.
In the Beyond the Basics and Advanced course, I find the group dynamic extremely exciting as I see long time CAD users look at new features and workflows to adapt and apply to their needs in the design office. Our follow-on courses are very much a hands-on skill building experience.
“Can I put the area of a room in a table”
During these more advanced training courses, I tend to describe features that will streamline a workflow. An example being, when I trained a group of delegates from the world of space planning, where they asked: “Can I put the area of a room in a table?” The answer being “yes”, allows us to discover the workflow to achieve this goal.

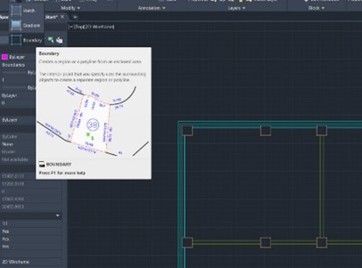

First, we looked at the boundary command.
Using the Object type as Polyline, we picked a point inside a room.

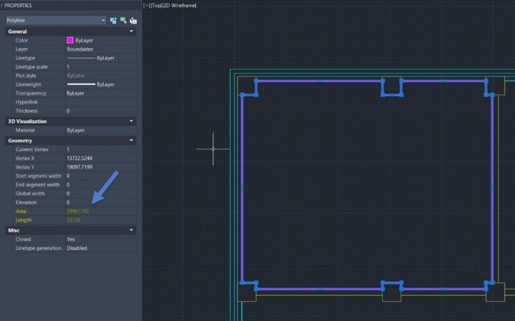

This created a closed polyline bounding one of the rooms. In the properties under Geometry, we see that there is an entry describing Area and Length. We could then use that information to populate given cells in a table.

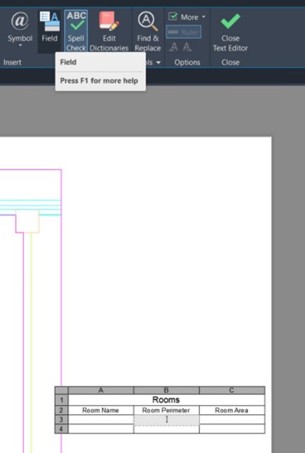

Over in Paper Space we created a simple table to display Room Name, Room Perimeter and Room Area. In that table we double clicked on the data cell under Room Perimeter and selected field in the Data menu.

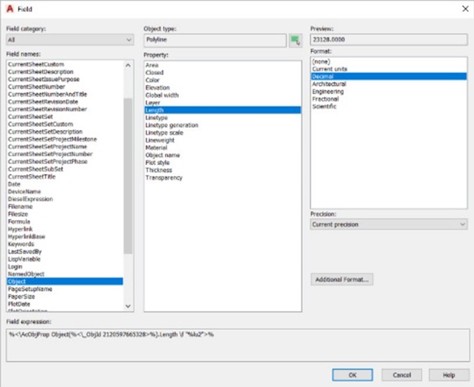

In the field dialogue box, we selected object on the left field names and then selected the polyline. Even when we are in Paper Space we can select the polyline model line.
The Parameter we needed was Length to describe our room perimeter and Decimal for format.

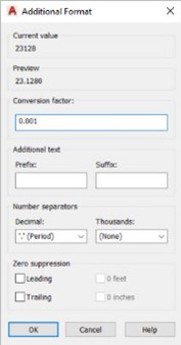

In Additional Format we used a conversion factor of 0.001 to convert our millimetres unit size to meters for our table entry.
This gave us a value that represented Metres in Length for the perimeter of the room or boundary that we created. This value is dynamic so if the boundary is changed it will update the table field value.

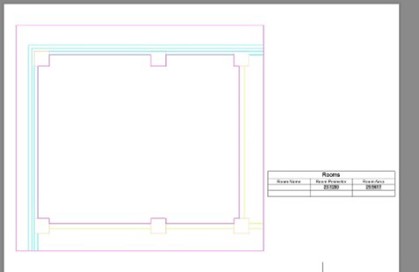

We then used the same procedure to extract the area value from the polyline and put in the table.
